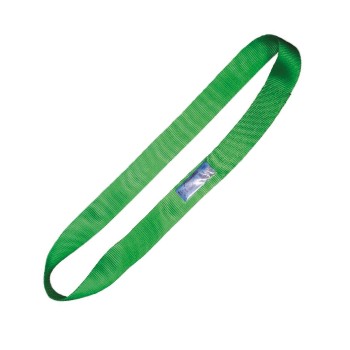

Endless Webbing Slings, ASME/ANSI B30.9
Single Ply Endless Type Webbing Sling Class 5 (6800 lb/inch width)
	Webbing  Width  (inch)	Vertical	Choker	Vertical  Basket	60 Basket	45 Basket	30 Basket	M.B.S.
		lbs	lbs	lbs	lbs	lbs	lbs	lbs
	1	2,200	1,760	2,200	3,811	4,400	3,111	11,000
	1-1/2	3,200	2,560	6,400	5,543	4,525	3,200	16,000
	1-3/4	3,800	3,040	7,600	6,582	5,374	3,800	19,000
	2	4,400	3,520	4,400	7.621	8,800	6,222	22,000
	3	6,600	5,280	6,600	11,432	13,200	9,333	33,000
	4	8,800	7,040	8,800	15,242	17,600	12,444	44,000
	5	11,000	8,800	11,000	19,052	22,000	15,554	55,000
	6	13,200	10,560	13,200	22,863	26,400	18,665	66,000
Single Ply Endless Type Webbing Sling Class 7 (9800 lb/inch width)
	Webbing  Width  (inch)	Vertical	Choker	Vertical  Basket	60 Basket	45 Basket	30 Basket	M.B.S.
		lbs	lbs	lbs	lbs	lbs	lbs	lbs
	1	3,200	2,560	6,400	5,543	4,525	3,200	16,000
	1-1/2	4,600	3,680	9,200	7,768	6,505	4,600	23,000
	1-3/4	5,400	4,320	10,800	9,353	7,636	5,400	27,000
	2	6,200	4,960	12,400	10,739	8,767	6,200	31,000
	3	9,400	7,520	18,800	16,281	13,292	9,400	47,000
	4	12,400	9,920	24,800	21,477	17,534	12,400	62,000
	5	15,600	12,480	31,200	27,020	22,059	15,600	78,000
	6	18,600	14,880	37,200	32,216	26,300	18,600	93,000
	8	21,150	16,920	42,300	36,632	29,907	21,150	105,750
	10	26,450	21,160	52,900	45,812	37,401	26,450	132,250
