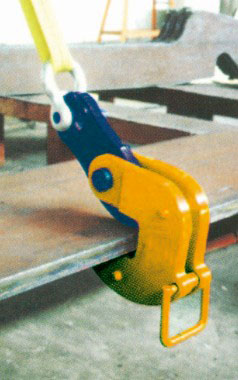

Turning Lifter | ||||
Part No. | Model | WLL(tonnes) | Jaw Opening(mm) | Weight(kg) |
FD-0093 | DFQ1.5 | 1.5 | 0-20 | 5 |
FD-0094 | DFQ2.5 | 2.5 | 0-30 | 9 |
FD-0095 | DFQ5 | 5 | 0-40 | 20 |
FD-0096 | DFQ8 | 8 | 0-50 | 26 |
FD-0097 | DFQ10 | 10 | 0-60 | 31 |
FD-0098 | DFQ10 | 10 | 50-100 | 40 |

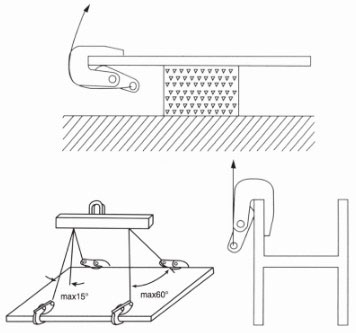

DFQ turn clamp Working load limit(WLL):1.5-10T Use: ● For lifting and turn steel plate ● From a mechanics point of view ,these clamps have ideal designs,which are compact , lightweight ,easy to use . ● The working load limited is applied in one piece , during lifting single could be in use for horizontal lifting and transport. |
