Double Steel Plate Clamp
Type：Lifting Hoist Products - Lifting Clamp Trolley

Double Steel Plate Clamp

Part No. Model WLL(tonnes) Jaw Opening(mm) Weight(kg)

FD-0086 QS1 1 0-40 2

FD-0087 QS2 2 0-50 3.5

FD-0088 QS3.2 3.2 0-60 6

FD-0089 QS5 5 0-70 14.5

FD-0090 QS7 7 0-90 22

QS double steel plate clamp

Working load limit(WLL)：1-7T

Use：

● Clamp for the horizontal lifting of“H”,“I”, “T”,“L”shaped structured steel and plate steel.

● Manufactured from high quality carbon steel.

● Avoid snatch or shock loading.

● The roller at the head of the hook will not damage the sling rope.

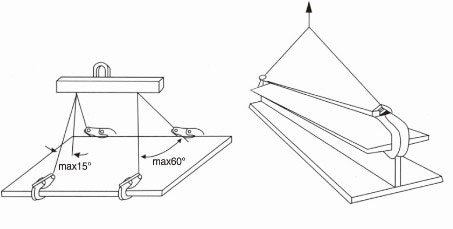

● The working load limit is the maximum load that the clamp are authorized to support
when used in pairs with a lift angle of 60°.In lifting operations the clamps can be used in
pairs or multiples.

● The sharp hook point is effective when inserting into a small clearance.
