LC Series Horizontal Lifter
Type：Lifting Hoist Products - Lifting Clamp Trolley

LC Series Horizontal Lifter

Part No. Model WLL(tonnes) Jaw Opening(mm) Weight(kg)

FD-0107 LC1 1 1-13 2

FD-0108 LC2 2 3-22 4.5

FD-0109 LC3 3 12-35 8.9

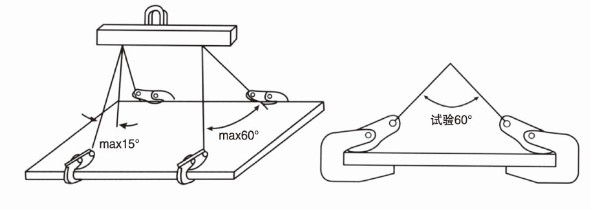

LC horizontal plate clamp

Working load limit(WLL)：1-3T .

Use：

● Clamp for the horizontal lifting of“H”,“I”,“T”,“L”shaped structured
steel.

● From a mechanics point of view,these clamps have ideal designs,
which are compact , lightweight ,easy to use

● The main body and parts are made from die-forge special alloy
steels, which are optimally tempered for maximum strength and
durability.
