I Steel Beam Clamp
Type：Lifting Hoist Products - Lifting Clamp Trolley

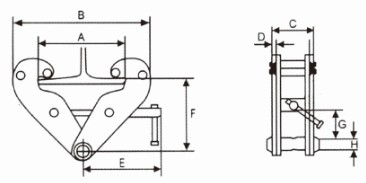

I Steel Beam Clamp

Part No. Model WLL(tonnes) Jaw
Opening(mm) Weight(kg)

FD-0158 YC1 1 75-220 3.8

FD-0159 YC2 2 75-220 4.6

FD-0160 YC3 3 80-320 9

FD-0161 YC5 5 80-320 11

FD-0162 YC10 10 90-320 16

YC beam clamp

Working load limit(WLL)：1-10T.

Use：

● Provides a quick and versatile rigging point for hoisting equipment ,
pulley blocks or loads.

● Flexible application due to wide adjustment range.

● The central threaded spindle allows easy attachment and a safe
and secure grip. .The spindle can be secured against loosening.

● Option: Small dimensions for applications at beams with a low base
height.

◇Prev：6x19 Steel Wire Rope (Ungalvanized and Galvanized)
◇Next：CDD Drum Lifting Clamp

【I Steel Beam Clamp】

I Steel Beam Clamp

Part No.	Model	WLL(tonnes)	Jaw Opening(mm)	Weight(kg)
FD-0158	YC1	1	75-220	3.8
FD-0159	YC2	2	75-220	4.6
FD-0160	YC3	3	80-320	9
FD-0161	YC5	5	80-320	11
FD-0162	YC10	10	90-320	16
YC beam clamp Working load limit(WLL)：1-10T. Use： ● Provides a quick and versatile rigging point for hoisting equipment , pulley blocks or loads. ● Flexible application due to wide adjustment range. ● The central threaded spindle allows easy attachment and a safe and secure grip. .The spindle can be secured against loosening. ● Option: Small dimensions for applications at beams with a low base height.
