PDL Series Horizontal Lifter
Type：Lifting Hoist Products - Lifting Clamp Trolley

PDL Series Horizontal Lifter

Part No. Model WLL(tonnes) Jaw
Opening(mm) Weight(kg)

FD-0084 PDL1.6 1.6 0-45 7.5

FD-0085 PDL3.2 3.2 0-45 10

PDL horizontal plate clamp

Working load limit(WLL)：1.6-3.2T

Use：

● This acts as an additional safety feature specifically for use with thin sheets
which may have a tendency to deflect or sag.

● Manufactured from high quality carbon steel.

● Avoid snatch or shock loading.

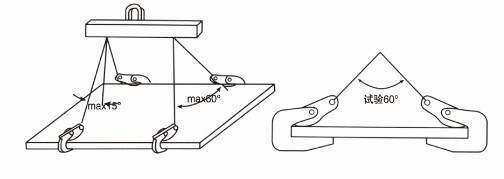

● The working load limit is the maximum load that the clamp are authorized to
support when used in pairs with a lift angle of 60°.In lifting operations the
clamps can be used in pairs or multiples.

◇Prev：6x19 Steel Wire Rope (Ungalvanized and Galvanized)
◇Next：CDD Drum Lifting Clamp

【PDL Series Horizontal Lifter】

PDL Series Horizontal Lifter

Part No.	Model	WLL(tonnes)	Jaw Opening(mm)	Weight(kg)
FD-0084	PDL1.6	1.6	0-45	7.5
FD-0085	PDL3.2	3.2	0-45	10
PDL horizontal plate clamp Working load limit(WLL)：1.6-3.2T Use： ● This acts as an additional safety feature specifically for use with thin sheets which may have a tendency to deflect or sag. ● Manufactured from high quality carbon steel. ● Avoid snatch or shock loading. ● The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations the clamps can be used in pairs or multiples.
