Cement Products Clamp | |||
Part No. | WLL(tonnes) | Jaw Opening(mm) |
Weight(kg) |
PLC-0001 | 1 | 40-120 | 9.4 |
PLC-0002 | 2 | 50-180 | 15 |
PLC-0003 | 3 | 90-220 | 23 |
PLC-0004 | 4 | 90-220 | 30 |
PLC-0005 | 5 | 90-220 | 49 |

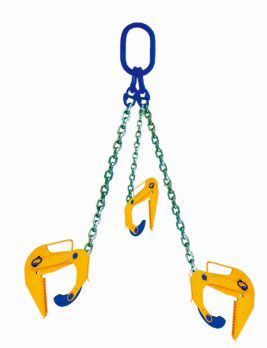

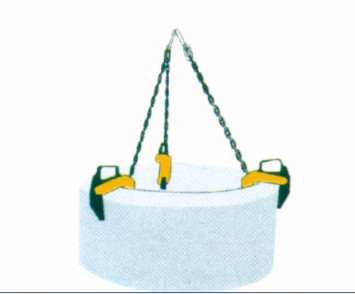

The tigrip concrete pipe lifting gear meeta all these requirements it is a three- legged lifting system for the safe and non-marring transport of concrete pipes up to a desmeter of mm and a load of up to 3t. The jaw capacity is designed for concrete pipe thicknesses form 40-220mm. Attachment and removal of the clamps can be done easily due to the handles that have been incorporated into each clamp. |
