CD Series Vertical Lifting Clamps | ||||
Part No. | Model | WLL(tonnes) | Jaw Opening(mm) |
Weight(kg) |
FD-0001 | CD0.8 | 0.8 | 0-15 | 2 |
FD-0002 | CD1 | 1 | 0-15 | 4 |
FD-0003 | CD1(B) | 1 | 0-20 | 5 |
FD-0004 | CD1.6 | 1.6 | 0-20 | 7 |
FD-0005 | CD2 | 2 | 0-25 | 8 |
FD-0006 | CD3.2 | 3.2 | 0-25 | 15 |
FD-0007 | CD3.2(B) | 3.2 | 0-30 | 15 |
FD-0008 | CD5 | 5 | 0-30 | 21 |
FD-0009 | CD5(B) | 5 | 0-50 | 23 |
FD-0010 | CD8 | 8 | 0-45 | 37 |
FD-0011 | CD12 | 12 | 50-90 | 50 |
FD-0012 | CD16 | 16 | 60-100 | 65 |

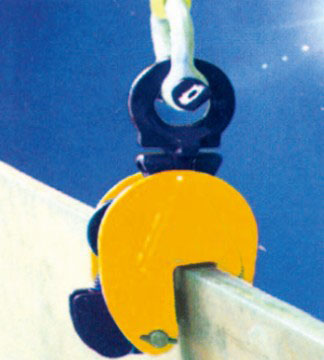

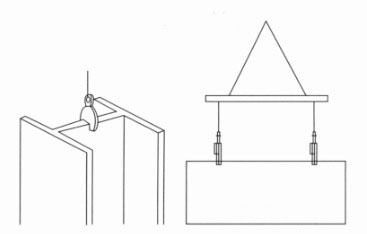

CD/CDE plate clamp Working load limit(WLL)0.8-16T Use: ● For lifting and transporting of steel plates and structures from all positions (horizontal, vertical and sidelong). ● Articulated lifting shackle(CD type). ● Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered. ● ocked in closed as well as in open position. ● rom high quality carbon steel |
