CDH Vertical Lifting Clamps | ||||
Part No. | Model | WLL(tonnes) | Jaw Opening(mm) |
Weight(kg) |
FD-0020 | CDH0.8 | 0.8 | 0-16 | 2.8 |
FD-0021 | CDH1 | 1 | 0-22 | 3.6 |
FD-0022 | CDH2 | 2 | 0-30 | 5.5 |
FD-0023 | CDH3.2 | 3.2 | 0-40 | 10 |
FD-0024 | CDH5 | 5 | 0-50 | 17 |
FD-0025 | CDH8 | 8 | 0-60 | 26 |
FD-0026 | CDH10 | 10 | 0-80 | 32 |
FD-0027 | CDH12 | 12 | 25-90 | 48 |
FD-0028 | CDH16 | 16 | 60-125 | 80 |

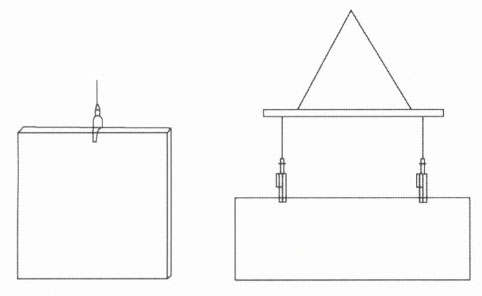

CDH vertical plate clamp Working load limit(WLL):0.8-16T. Use: ● Standard design clamp for vertical lifting of steel plates and steel structures. The spring-loaded tightening lock mechanism assures a positive initial clamping force. ● Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered. ● The clamp is locked in closed as well as in open position. ● Manufactured from high quality carbon steel. ● High-frequency quenching of die-forged special alloy steels gives greater durability to the cam. |
