Single Steel Plate Lifting Clamps

Product category

Single Steel Plate Lifting Clamps
Type：Lifting Hoist Products - Lifting Clamp Trolley

Single Steel Plate Lifting Clamps

Part No. Model WLL(tonnes) Jaw Opening(mm) Weight(kg)

FD-0073 PDQ1 1 0-50 3

FD-0074 PDQ2 2 0-60 5

FD-0075 PDQ.2 3.2 0-90 12

FD-0076 PDQ5 5 0-120 17

FD-0077 PDQ8 8 0-130 25

FD-0078 PDQ10 10 0-150 30

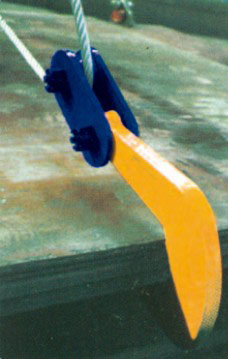

PDQ single steel plate clamp

Working load limit(WLL)：1-10T.

Use：

● Suitable for lifting and transport single or multi steel plates.

● Manufactured from high quality carbon steel.

● Avoid snatch or shock loading . Lifting beam must be in use.

● The roller at the head of the hook will not damage the sling rope.

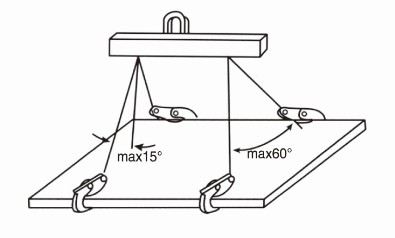

● The working load limit is the maximum load that the clamps are authorized to support when
used in pairs with a lift angle of 60°.In lifting operations four clamps must at least always be
used.

● Automatic unloading.
