Double Steel Plate Lifting Clamps
Type:Lifting Hoist Products - Lifting Clamp Trolley



Double Steel Plate Lifting Clamps
Part No. Model WLL(tonnes) Jaw Opening(mm) Weight(kg)
FD-0103 DCQ4 4 0-100 9
FD-0104 DCQ6 6 0-120 14
FD-0105 DCQ8 8 0-160 25
FD-0106 DCQ10 10 0-210 38

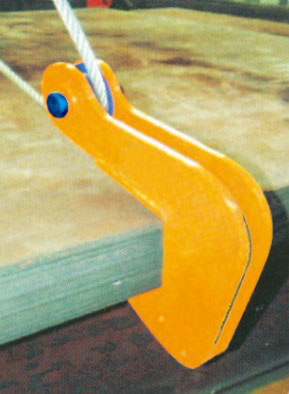

DCQ double steel plate clamp

Working load limit(WLL)
4-10T

Use


 Suitable for lifting and transport single or multi steel plates.

 Manufactured from high quality carbon steel.

 Avoid snatch or shock loading . Lifting beam must be in use.

 The roller at the head of the hook will not damage the sling rope.

 The working load limit is the maximum load that the clamps are authorized to support when used
in pairs with a lift angle of 60°.In lifting operations four clamps must at least always be used.

 Automatic unloading.
