FPT-E2 Plain Trolley
Type：Lifting Hoist Products - Lifting Clamp Trolley

FPT-E2 Plain Trolley

Capacity
(T) I-Beam
Width (mm) Net Weight
(kg) Rated
Load (KN) Min Radus
of Curve

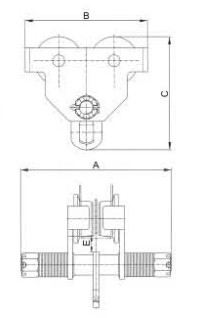

(m) Dimension (mm)

A B C E K

0.5 64-152 8.6 6.25 0.9 264 216 195 31 110

1 64-203 15.4 12.5 1 335 260 239 32.5 136

2 88-203 23 25 1.1 353 300 286 31 161

3 102-203 40 37.5 1.3 371 345 336 35 185

5 114-203 50 62.5 1.4 393 390 393 37 220

10 125-203 97 125 1.7 436 470 500 45 280

◇Prev：6x19 Steel Wire Rope (Ungalvanized and Galvanized)
◇Next：Roller Shackle

【FPT-E2 Plain Trolley】

FPT-E2 Plain Trolley

Capacity (T)	I-Beam Width (mm)	Net Weight (kg)	Rated Load (KN)	Min Radus of Curve (m)	Dimension (mm)
Capacity (T)	I-Beam Width (mm)	Net Weight (kg)	Rated Load (KN)	Min Radus of Curve (m)	A	B	C	E	K
0.5	64-152	8.6	6.25	0.9	264	216	195	31	110
1	64-203	15.4	12.5	1	335	260	239	32.5	136
2	88-203	23	25	1.1	353	300	286	31	161
3	102-203	40	37.5	1.3	371	345	336	35	185
5	114-203	50	62.5	1.4	393	390	393	37	220
10	125-203	97	125	1.7	436	470	500	45	280
