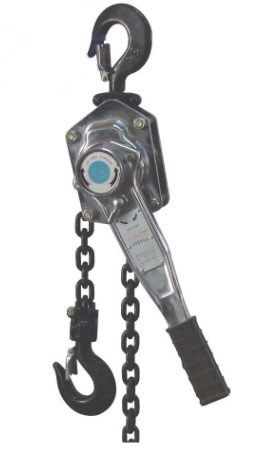

Manual Lever Block, FDK Type | |||||||||||
Model | Capacity (T) |
Standard lift (M) |
Running Test Load (T) |
No. of Falls of Load Chain |
Load Chain Diameter (mm) |

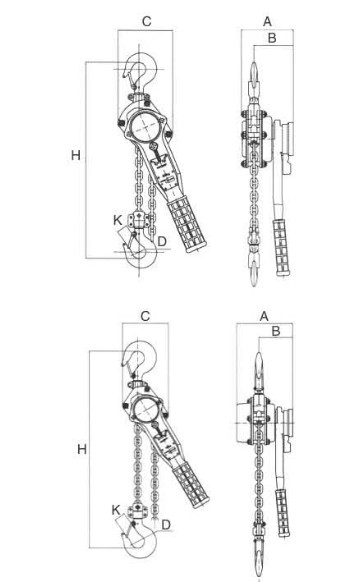

Dimensions (mm) | Net Weight (kg) | ||||
A | B | C | D | K | |||||||
FDK 0.75T | 0.75 | 1.5 | 1.125 | 1 | 6 | 158 | 92 | 160 | 37 | 29 | 7.4 |
FDK 1.5T | 1.5 | 1.5 | 2.25 | 1 | 7.1 | 173 | 99 | 145 | 42.5 | 33.5 | 11.4 |
FDK 3.0T | 3 | 1.5 | 4.5 | 1 | 10 | 200 | 112 | 199 | 50 | 40 | 20.8 |
FDK 6.0T | 6 | 1.5 | 9 | 2 | 10 | 200 | 112 | 230 | 53 | 42.5 | 28.1 |
FDK 9.0T | 9 | 1.5 | 13.5 | 3 | 10 | 200 | 112 | 338 | 67 | 53 | 48.9 |
Remarks: the standard lift we accept orders to 12m lift. |
