Manual Chain Block, FDC Type
Model	Capacity (T)	Standard lift (M)	Running Test Load  (T)	No. of  Falls  of Load  Chain	Load  Chain Diameter (mm)	Dimensions (mm)			Net  Weight (kg)

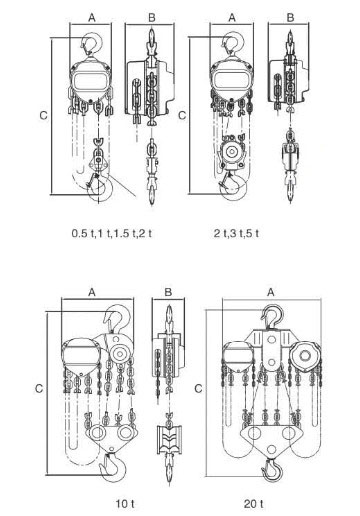

						A	B	C
FDC 0.5T	0.5	2.5	0.75	1	6	113	125	270	9
FDC 1.0T	1	2.5	1.5	1	6	131	150	317	11.5
FDC 1.5T	1.5	2.5	2.25	1	8	146	183	398	17.5
FDC 2.0T	2	3	3	2	6	131	150	414	16
FDC 3.0T	3	3	4.5	2	8	146	183	465	27
FDC 5.0T	5	3	7.5	2	10	169	213	636	43
FDC 10.0T	10	3	15	4	10	169	405	750	75
FDC 20.0T	20	3	30	8	10	191	595	1000	185
Remarks: the standard lift we accept orders to 12m lift.
