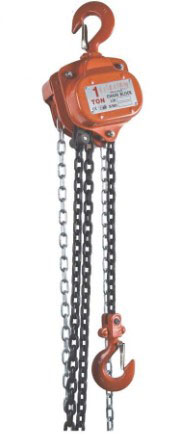

Manual Chain Block, FD-A Type
Type:Lifting Hoist Products - Lifting Hoist





Manual Chain Block, FD-A Type
Model Capacity
(T)
Standard
lift (M)
Running
Test
Load
(T)
No. of
Falls
of Load
Chain
Load
Chain
Diameter
(mm)
Dimensions (mm) Net
Weight
(kg)
A B C
FD-A 0.5T 0.5 2.5 0.75 1 5 129 136 270 8.4
FD-A 1.0T 1 2.5 1.5 1 6.3 151 145 317 12
FD-A 1.5T 1.5 2.5 2.25 1 7.1 150.5 164.5 399 16.2
FD-A 2.0T 2 3 3 1 8 161.5 187 414 20
FD-A 3.0T 3 3 4.5 2 7.1 150.5 164.5 465 24
FD-A 5.0T 5 3 7.5 2 9 161.5 211 636 41
FD-A 10.0T 10 3 15 4 9 207 398 798 79
FD-A 20.0T 20 3 30 8 9 215 650 890 193
FD-A 30.0T 30 3 45 12 9 350 680 1380 220
FD-A 50.0T 50 3 75 24 9 410 965 1950 1092
Remarks: the standard lift we accept orders to 12m lift.
