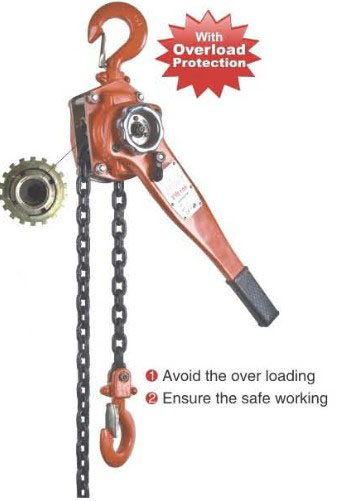

Manual Lever Block, FDA Type | |||||||||
Model | Capacity (T) |
Standard lift (M) |
Running Test Load (T) |
No. of Falls of Load Chain |
Load Chain Diameter (mm) |
Dimensions (mm) | Net Weight (kg) | ||
A | B | C | |||||||
FDA 0.5T | 0.5 | 1.5 | 0.75 | 1 | 5 | 102 | 80 | 95 | 3.5 |
FDA 0.75T | 0.75 | 1.5 | 1.125 | 1 | 6 | 148 | 87.5 | 135 | 7 |
FDA 1.0T | 1 | 1.5 | 1.15 | 1 | 6 | 148 | 87.5 | 135 | 7.5 |
FDA 1.5T | 1.5 | 1.5 | 2.25 | 1 | 8 | 176 | 102 | 157 | 11 |
FDA 2.0T | 2 | 1.5 | 3 | 1 | 8 | 176 | 102 | 157 | 12 |
FDA 3.0T | 3 | 1.5 | 4.5 | 1 | 10 | 195 | 109 | 210 | 19 |
FDA 6.0T | 6 | 1.5 | 9 | 2 | 10 | 195 | 109 | 253 | 32 |
Remarks: the standard lift we accept orders to 12m lift. |
