Electric Chain Hoist, FD-A Type | ||||||
Model | FD-A05 | FD-A10 | FD-A20 | FD-A30 | FD-A50 | |
Capacity (t) | 0.5 | 1 | 2 | 3 | 5 | |
Standard lift (m) | 3 | 3 | 3 | 3 | 3 | |
Lifting speed (m/min) | 5.8 | 4.5 | 2.25 | 1.5 | 0.75 | |
Motor power (Kw) | 0.8 | 1.1 | 1.1 | 1.1 | 1.1 | |
Power Supply | 3-Phase/380V50Hz | |||||
Control voltage (V) | 24V | |||||
Insulation grade | F | |||||
Rating | 40% | |||||
Spec. of load chain | Ø7.1X21 | |||||
No. of chain | 1 | 1 | 2 | 3 | 5 | |
Working level | M4 | M4 | M4 | M4 | M3 | |
Running test load (Kn) | 0.625 | 1.25 | 2.5 | 3.75 | 6.25 | |
Length of lable (m) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
Net weight (Kg) | 44 | 45 | 50 | 60 | 80 | |
Extea weight per meter of extra lift (kg) | 1.1 | 1.1 | 2.2 | 3.3 | 5.5 | |
Minimum distance between hooks (mm) | 550 | 550 | 600 | 700 | 1000 | |

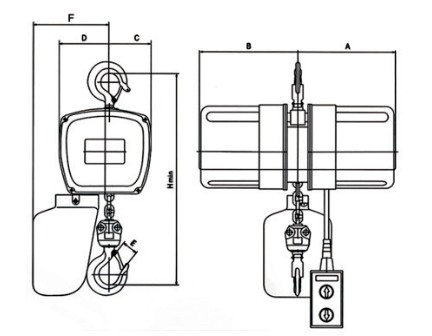

Dimension | A (mm) | 250 | 250 | 250 | 250 | 250 |
B (mm) | 250 | 250 | 250 | 250 | 250 | |
C (mm) | 106 | 106 | 72 | 72 | 72 | |
D (mm) | 126 | 126 | 160 | 160 | 160 | |
E (mm) | 32 | 32 | 35 | 40 | 50 | |
F (mm) | 185 | 185 | 218 | 218 | 218 | |

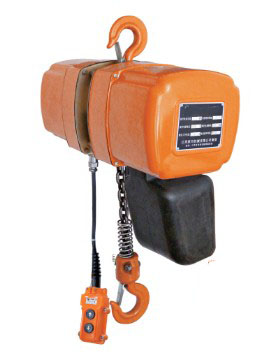

Nonstandard power supply can be customized. As our products are incessantly being improved and developed, their structures maybe slightly different from instructions. Thanks for your understanding and supporting again. FD-A electric chain hoist is a new kind of product developed by combining and applying technologies from Japan and Germany. It has such characteristics as small cubage, light weight, convenient operation and beautiful apparance. Especially, its unique overloading safety protection setting and electical machine hot protection setting make sure of the higher reliability of this product. The procuct is widely used for suspending heavy goods in factories, mines, docks, shops and storehouses. It can also be used in low level space materials circulation system by mating with aerial travelling crane equipment. This product attests to be effective equipment which can improve working condition and enhance labor efficiency, optional wireless remote controller. |
