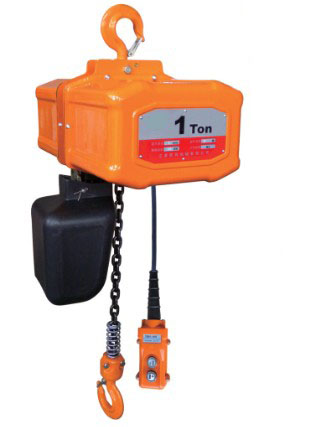

Electric Chain Hoist with Dual Speed, FD-B Type | |||||
Model | FD-BT05 | FD-BT10 | FD-BT20 | FD-BT30 | |
Capacity (t) | 0.5 | 1 | 2 | 3 | |
Standard lift (m) | 3 | 3 | 3 | 3 | |
Lifting speed (m/min) | 7/2.3 | 6/2 | 3/1 | 2/0.7 | |
Motor power (Kw) | 0.8/0.27 | 1.2/0.4 | 1.2/0.4 | 1.2/0.4 | |
Power Supply | 3-Phase/380V50Hz | ||||
Control voltage (V) | 24V | ||||
Insulation grade | F | ||||
Rating | 40% | ||||
Spec. of load chain | Ø7.1X21 | ||||
No. of chain | 1 | 1 | 2 | 3 | |
Working level | M4 | M4 | M4 | M4 | |
Running test load (Kn) | 0.625 | 1.25 | 2.5 | 3.75 | |
Length of lable (m) | 2.5 | 2.5 | 2.5 | 2.5 | |
Net weight (Kg) | 53 | 58 | 63 | 68 | |
Extea weight per meter of extra lift (kg) | 1.1 | 1.1 | 2.2 | 3.3 | |
Minimum distance between hooks (mm) | 500 | 520 | 630 | 710 | |

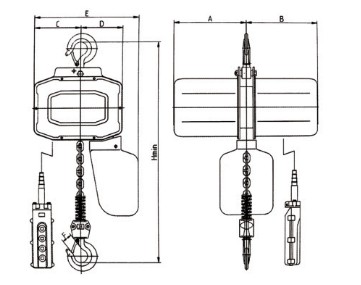

Dimension | A (mm) | 245 | 245 | 245 | 245 |
B (mm) | 245 | 245 | 245 | 245 | |
C (mm) | 158 | 158 | 124 | 124 | |
D (mm) | 142 | 142 | 176 | 176 | |
E (mm) | 350 | 350 | 350 | 350 | |
F (mm) | 34 | 34 | 40 | 45 | |
Nonstandard power supply can be customized. As our products different from instructions. Thanks for your understanding and supporting again. FD-B electric chain hoist with dual speed is new kind of product we developed recently. It has such characteristics as fast lifting speed, convenient operation and beautiful apperance. Especially, its unique overloading safety protection setting and electrical machine hot protectiong setting make sure of the higher reliability of this product. It is widely used in lifting light and small goods. It can also be used in low- level space materials cirulation system by mating with aerial travelling crane equipment. This product sttests to be effective equipment which can improve working condition and enhance lavor efficiency, optional wireless remote controller. |
