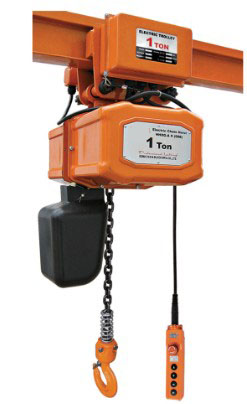

Electric Chain Hoist with Trolley, FD-B Type | |||||||
Model | FD-BX05 | FD-BX10 | FD-BX20 | FD-BX30 | FD-BX50 | FD-BX100 | |
Capacity (t) | 0.5 | 1 | 2 | 3 | 5 | 10 | |
Standard lift (m) | 3 | 3 | 3 | 3 | 3 | 3 | |
Lifting speed (m/min) | 7 | 7 | 3.5 | 2.3 | 2.6 | 2.6 | |
Running Motor Power (kw) | 0.2 | 0.2 | 0.3 | 10.4 | 0.4 | 0.4X2 | |
Lifting motor power (kw) | 0.8 | 1.6 | 1.6 | 1.6 | 3 | 3X2 | |
Power Supply | 3-Phase/380V50Hz | ||||||
Control voltage (V) | 24V | ||||||
Insulation grade | F | ||||||
Rating | 40% | ||||||
Spec. of load chain | Ø7.1X21 | Ø9X27 | |||||
No. of chain | 1 | 1.6 | 2 | 3 | 3 | 6 | |
Working level | M4 | M4 | M4 | M4 | M3 | M3 | |
Running test load (Kn) | 0.625 | 1.25 | 2.5 | 3.75 | 6.25 | 12.5 | |
Travelling speed (m/min) | 20 | 20 | 20 | 15 | 15 | 15 | |
I beam width (mm) | 74-124 | 74-124 | 74-124 | 102-152 | 102-152 | 102-152 | |
Length of lable (m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3X2 | |
Net weight (Kg) | 83 | 90 | 95 | 130 | 170 | 400 | |
Extea weight per meter of extra lift (kg) | 1.1 | 1.1 | 2.2 | 3.3 | 5.2 | 10.4 | |
Minimum distance between hooks (mm) | 520 | 520 | 640 | 720 | 900 | 1200 | |

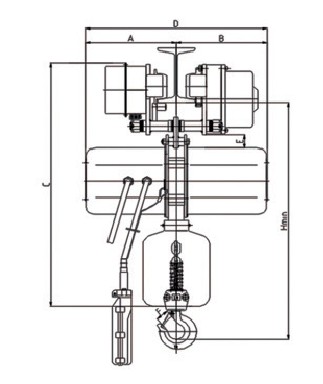

Dimension | A (mm) | 245 | 245 | 245 | 245 | 265 | 265 |
B (mm) | 245 | 245 | 245 | 245 | 265 | 265 | |
C (mm) | 710 | 710 | 710 | 710 | 950 | 1250 | |
D (mm) | 490 | 490 | 490 | 490 | 530 | 530 | |
E (mm) | 40 | 40 | 40 | 40 | 52 | 82 | |
F (mm) | 34 | 34 | 40 | 45 | 50 | 70 | |

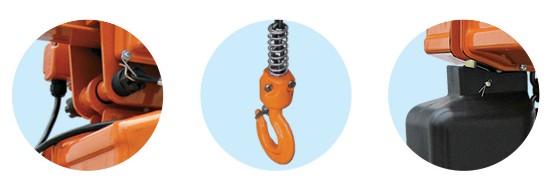

FD-B electric chain hoist is a new kind of product, we developed recently. It has such characteristics as fast lifting speed, convenient operation and beautiful appearance. Especially, its unique overloading safety protection setting and electrical machine hot protection setting make sure of the higher reliability of this product. It is widely used in lifting light and small goods. It can also be used in low-level space materials cirulation system by mating with aerial travelling crane equipment. This product attests to be effective equipment which can improve working condition and enhance labor efficiency, optional wireless remote controller. |
