Electric Trolley with Dual Speed, FDC-B Type | |||||
Capacity (t) | 1 | 2 | 3 | 5 | |
Running speed of trolley (m/min) | 20/6.7 | 20/6.7 | 15/5 | 15/5 | |
I type steel for trelley (mm) | 74-124 | 74-124 | 102-152 | 102-152 | |
Motor power (w) | 0.3/0.1 | 0.3/0.1 | 0.4/0.13 | 0.4/0.13 | |
Power supply | 3P/380V/50Hz | ||||
Net weight (kg) | 36 | 38 | 69 | 73 | |
Control switch voltage (V) | 24 | 24 | 24 | 24 | |

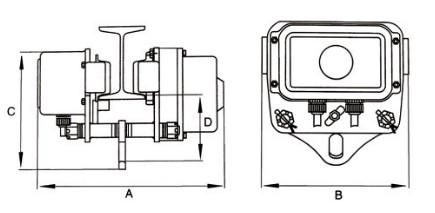

Dimension | A (mm) | 496 | 496 | 542 | 542 |
B (mm) | 266 | 270 | 330 | 334 | |
C (mm) | 264 | 264 | 340 | 342 | |
D (mm) | 145 | 145 | 180 | 182 |
