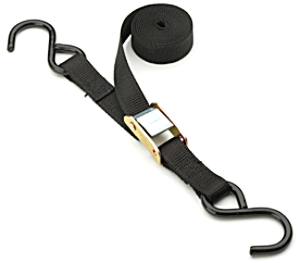

Cam Buckle Tie Down
Type:Cargo Control Transport Products - Ratchet Tie Down



Cam Buckle Tie Down
Photos Standard Length End Fittings M. B.S.
0.4 + 4.6M S Hook  Vinyl Coated 500KG
0.4 + 4.6M Double J Hook 500KG
0.4 + 4.6M Claw Hook 500KG
0.4 + 4.6M Triangle 500KG



Ratchet Tie Down, Ratchet Lashing, Ratchet Straps, Cargo Lashing (to BS EN 12195-2)


•100% high tenacity polyester of lashing strap
•Low elongation
•Popular color of strap:orange,blue,yellow,red,black
•Width available:25mm to 100mm
•Breaking strength scope:0.5t to 10t
•Length available:1m to 10m
•According to EN 12195/2


Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.


The main advantages of ratchet lashings are :
1. Load restraint using a tensioning device (ratchet)
2. Effective and safe control of loads whilst transportation
3. Extremely quick and efficient tie down and release of load thus saving time.
4. No damage to the load being tied down.


They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.


Warning:
1.Only use undamaged ratchet lashing, the label indicating the capacity must be clearly legible.
2. Ratchet lashings must not be overload.
3. Do not tie knots in the webbing.
4.Protect the webbing against abrasion and/or cutting by using edge protectors and sleeves for sharp edges.
5.Avoid twisted positioning of the ratchet lashing.
6.Do not place loads on the ratchet lashing, which could cause damage.
7. Ratchet lashings should not be used as a load lifting gear.


Cam buckle tie down, cam buckle tie down straps, cam buckle lashing.


We supply BS EN 12195-2 Ratchet tie down, Cargo lashing, web lashing, ratchet straps, Cargo Control Tie-Downs, Car Tie Downs, Tent straps, lashing system, air line straps, cargo strap, web lashing, etc.
