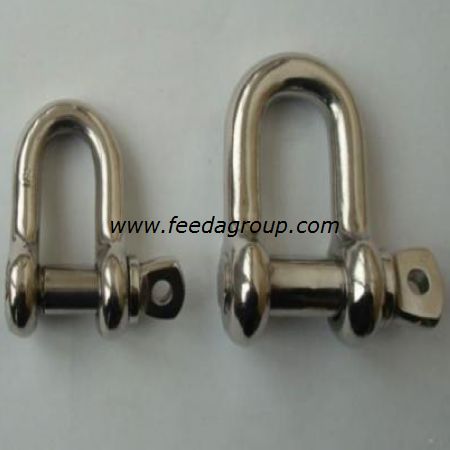

Stainless Steel US Type Dee Shackle AISI 316, AISI 304 | |||||
Dimension (in.) | W.L.L. | WT | |||
SIZE A | B | C | D | ton | kgs |
3/16" | 1/4" | 0.38 | 0.75 | 0.33 | 0.025 |
1/4" | 5/16" | 0.47 | 0.88 | 0.50 | 0.043 |
5/16" | 3/8" | 0.53 | 1.03 | 0.75 | 0.080 |
3/8" | 7/16" | 0.66 | 1.25 | 1.00 | 0.134 |
7/16" | 1/2" | 0.75 | 1.44 | 1.50 | 0.220 |
1/2" | 5/8" | 0.81 | 1.63 | 2.00 | 0.310 |
5/8" | 3/4" | 1.06 | 2.00 | 3.00 | 0.600 |
3/4" | 7/8" | 1.25 | 2.38 | 4.00 | 1.006 |
7/8" | 1" | 1.44 | 2.81 | 5.00 | 1.533 |
1" | 1 1/8" | 1.69 | 3.10 | 6.00 | 1.960 |
Stainless steel rigging, stainless steel shackles, stainless steel screw pin chain shackle, US type bow shackles.
Forged stainless steel chain shackles with removable screw pin
We manufacture stainless steel shackle, AISI316, AISI 304 shackle, dee shackle, bow shackle, anchor chain shackle, key pin shackles, twisted shackles, bolt anchor shackles, swivel snap shackles...
