Snap Hook, DIN5299C, Zinc Plated

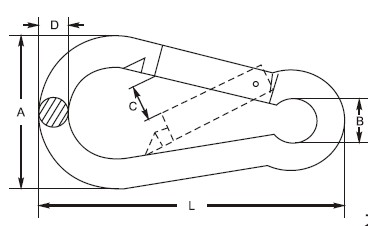

ART. NO.	SIZE mm	A mm	B mm	C mm	D mm	L mm	SWL Lbs	N.W. kg/100pcs
FD-245	4X40	20	6	6	4	40	100	0.8
FD-245	5X50	25	8	7	5	50	160	1.6
FD-245	6X60	30	9	8	6	60	260	2.5
FD-245	7X70	35	10	10	7	70	335	4.3
FD-245	8X80	40	12	11	8	80	400	6.1
FD-245	9X90	45	15	12	9	90	500	8.8
FD-245	10X100	50	17	12	10	100	650	12.5
FD-245	11X120	57	18	19	11	120	700	18.0
FD-245	12X140	67	20	20	12	140	800	25.0
FD-245	13X160	74	22	26	13	160	1300	35.7
FD-245	14X180	86	22	29	14	180	1600	45.5
FD-245	15X200	90	26	39	15	200	1800	55.6
Safety Factor: 4

Snap Hooks, Chain Connectors and Quick Links are ideal for a wide range of applications including boat and marine, harnesses and saddlery, farming and ranching, clothing and luggage, flag poles and dog leads.

Snap hook, carbine hooks, DIN5299C snap hook.

We supply Carbine Hooks, Snap hooks, Spring hooks, boating & marine snap hook,With screw or eyelet - Stainless steel or zinc plated -Rigging hardware.
