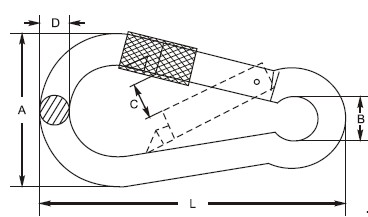

Snap Hook With Screw, Zinc Plated
ART. NO.	SIZE mm	A mm	B mm	C mm	D mm	L mm	SWL Lbs	N.W. kg/100pcs
FD-245S	5X50	25	8	6	5	50	150	2.0
FD-245S	6X60	30	9	7	6	60	250	3.0
FD-245S	7X70	35	10	7.5	7	70	320	4.4
FD-245S	8X80	40	10	8.5	8	80	400	6.8
FD-245S	9X90	45	12	9	9	90	500	9.6
FD-245S	10X100	50	15	10	10	100	650	12.8
FD-245S	11X120	57	17	16	11	120	700	29.1
FD-245S	12X140	67	20	18	12	140	800	25.5
FD-245S	13X160	74	22	23	13	160	1200	36.6
FD-245S	14X180	86	22	29	14	180	1400	51.0
Safety Factor: 4
