Snap Hook With Eyelet, Zinc Plated

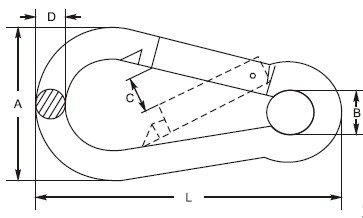

ART. NO.	SIZE mm	A mm	B mm	C mm	D mm	L mm	SWL Lbs	N.W. kg/100pcs
FD-2450	4X40	20	5	6	4	40	100	0.85
FD-2450	5X50	25	5	7	5	50	160	1.80
FD-2450	6X60	30	5	8	6	60	260	2.60
FD-2450	7X70	35	7	10	7	70	335	5.00
FD-2450	8X80	40	10	11	8	80	400	6.20
FD-2450	9X90	45	10	12	9	90	500	9.80
FD-2450	10X100	50	13	12	10	100	650	13.40
FD-2450	11X120	57	13	19	11	120	700	19.10
FD-2450	12X140	67	15	20	12	140	800	27.50
FD-2450	13X160	74	17	26	13	160	1300	35.80
Safety Factor: 4
