Egg Shaped Hook, Zinc Plated, Stainless Steel Egg Shaped Hook, AISI304 or AISI316
Type：Rigging Hardware - Snap Hook

Egg Shaped Hook, Zinc Plated

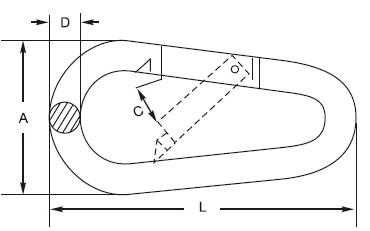

ART. NO. SIZE
mm A
mm C
mm D
mm L
mm SWL
Lbs N.W.
kg/100pcs

FD-246 5X50 25 7 5 50 160 1.70

FD-246 6X60 30 8 6 60 260 2.50

FD-246 7X70 35 10 7 70 335 4.40

FD-246 8X80 40 11 8 80 400 6.60

FD-246 9X90 45 12 9 90 500 9.30

FD-246 10X100 50 15 10 100 650 13.00

FD-246 11X120 57 17 11 120 700 18.50

FD-246 12X140 67 21 12 140 800 25.00

Safety Factor: 4

◇Prev：Snap Hook With Screw, Zinc Plated, Stainless Steel Snap Hook with Screw
◇Next：DIN764 Standard Link Chain

【Egg Shaped Hook, Zinc Plated, Stainless Steel Egg Shaped Hook, AISI304 or AISI316】

Egg Shaped Hook, Zinc Plated
ART. NO.	SIZE mm	A mm	C mm	D mm	L mm	SWL Lbs	N.W. kg/100pcs
FD-246	5X50	25	7	5	50	160	1.70
FD-246	6X60	30	8	6	60	260	2.50
FD-246	7X70	35	10	7	70	335	4.40
FD-246	8X80	40	11	8	80	400	6.60
FD-246	9X90	45	12	9	90	500	9.30
FD-246	10X100	50	15	10	100	650	13.00
FD-246	11X120	57	17	11	120	700	18.50
FD-246	12X140	67	21	12	140	800	25.00
Safety Factor: 4
