Oblique Angle Snap Hook, Zinc Plated, Stainless steel Oblique Angle Snap Hook, AISI304 or AISI316
Type：Rigging Hardware - Snap Hook

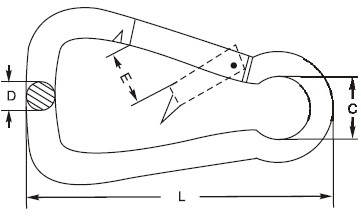

Oblique Angle Snap Hook, Zinc Plated

ART. NO. SIZE
mm C
mm L
mm D
mm E
mm SWL
Lbs N.W.
kg/100pcs

FD-247 6X60 8 60 6 10 260 2.80

FD-247 8X80 10 80 8 13 400 6.80

FD-247 10X100 12 100 10 18 650 13.60

FD-247 11X120 15 120 12 24 700 19.40

Safety Factor: 4

◇Prev：Snap Hook With Screw, Zinc Plated, Stainless Steel Snap Hook with Screw
◇Next：DIN764 Standard Link Chain

【Oblique Angle Snap Hook, Zinc Plated, Stainless steel Oblique Angle Snap Hook, AISI304 or AISI316】

About FeedaGroup.COM - About us  -   Set homepage  -  Add to Favorites  -   -  Contact us
Add:No.19, Fushun Branch Road, Qingdao, China.  -  Tel:+86-532-85632823  -  Fax:+86-532-85630281
   E-mail:info@feedagroup.com
Copyright © 2013 FeedaGroup.COM Inc. All Rights Reserved.
Feeda Group Ltd.

Oblique Angle Snap Hook, Zinc Plated
ART. NO.	SIZE mm	C mm	L mm	D mm	E mm	SWL Lbs	N.W. kg/100pcs
FD-247	6X60	8	60	6	10	260	2.80
FD-247	8X80	10	80	8	13	400	6.80
FD-247	10X100	12	100	10	18	650	13.60
FD-247	11X120	15	120	12	24	700	19.40
Safety Factor: 4
