Oblique Angle Snap Hook With Screw, Zinc Plated, Stainless Steel Oblique Angle Snap Hook with Screw
Type：Rigging Hardware - Snap Hook

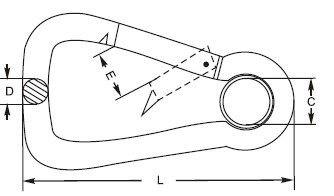

Oblique Angle Snap Hook with Screw, Zinc Plated

ART. NO. SIZE
mm C
mm L
mm D
mm E
mm SWL
Lbs N.W.
kg/100pcs

FD-2470 6X60 6 60 6 10 260 3.00

FD-2470 8X80 8 80 8 13 400 7.00

FD-2470 10X100 10 100 10 18 650 14.00

FD-2470 11X120 14 120 12 24 700 21.40

Safety Factor: 4

◇Prev：Snap Hook With Screw, Zinc Plated, Stainless Steel Snap Hook with Screw
◇Next：DIN764 Standard Link Chain

【Oblique Angle Snap Hook With Screw, Zinc Plated, Stainless Steel Oblique Angle Snap Hook with Screw】

Oblique Angle Snap Hook with Screw, Zinc Plated
ART. NO.	SIZE mm	C mm	L mm	D mm	E mm	SWL Lbs	N.W. kg/100pcs
FD-2470	6X60	6	60	6	10	260	3.00
FD-2470	8X80	8	80	8	13	400	7.00
FD-2470	10X100	10	100	10	18	650	14.00
FD-2470	11X120	14	120	12	24	700	21.40
Safety Factor: 4
