Oblique Angle Snap Hook With Screw And Eyelet, Zinc Plated, Stainless steel,Oblique Angle Snap Hook
Type：Rigging Hardware - Snap Hook

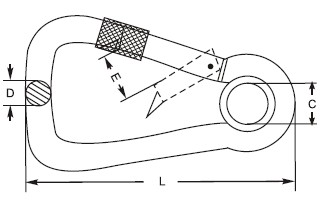

Oblique Angle Snap Hook with Screw And Eyelet , Zinc Plated

ART. NO. SIZE
mm C
mm L
mm D
mm E
mm SWL
Lbs N.W.
kg/100pcs

FD-2470S 6X60 6 60 6 9 250 3.25

FD-2470S 8X80 8 80 8 12 400 7.20

FD-2470S 10X100 10 100 10 16 650 14.50

FD-2470S 11X120 14 120 12 22 700 21.70

Safety Factor: 4

◇Prev：Snap Hook With Screw, Zinc Plated, Stainless Steel Snap Hook with Screw
◇Next：DIN764 Standard Link Chain

【Oblique Angle Snap Hook With Screw And Eyelet, Zinc Plated, Stainless steel,Oblique Angle Snap Hook】

Oblique Angle Snap Hook with Screw And Eyelet , Zinc Plated
ART. NO.	SIZE mm	C mm	L mm	D mm	E mm	SWL Lbs	N.W. kg/100pcs
FD-2470S	6X60	6	60	6	9	250	3.25
FD-2470S	8X80	8	80	8	12	400	7.20
FD-2470S	10X100	10	100	10	16	650	14.50
FD-2470S	11X120	14	120	12	22	700	21.70
Safety Factor: 4
