Wide Jaw Quick Link, Zinc Plated

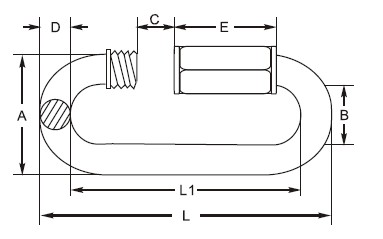

ART. NO.	SIZE mm	A mm	B mm	C mm	D mm	L mm	L1 mm	E mm	SWL Lbs	N.W. kg/100pcs
FD-508L	3.5	17.0	10.0	5	3.5	46.0	39.5	16.0	180	0.70
FD-508L	4	19.5	11.5	5.5	4	53.0	45.0	19.0	350	1.50
FD-508L	5	23.0	13.0	6.5	5	62.0	52.0	22.0	550	2.00
FD-508L	6	26.5	14.5	7.5	6	70.5	58.5	25.0	770	3.75
FD-508L	7	30.0	16.0	8.5	7	79.0	65.0	28.0	880	6.00
FD-508L	8	33.5	17.5	10.5	8	88.0	72.0	31.5	1430	9.00
FD-508L	10	40.5	20.5	12	10	105.5	85.5	36.0	1760	13.55
FD-508L	12	47.5	23.5	15	12	124.0	100.0	43.0	2755	25.00
Safety Factor: 4
