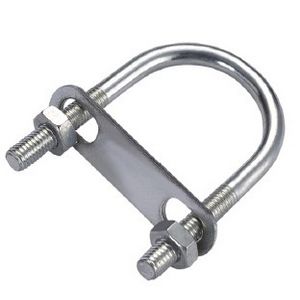

U Shaped Bolt, Zinc Plated, U Bolt, Zinc Plated U Bolt, Galvanized U Bolt, Bolt, U Bolt with Nut
Type：Rigging Hardware - Bolt Nut
Type：Rigging Hardware - Bolt Nut

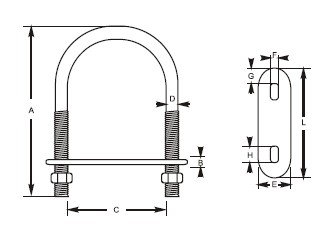

| U Shaped Bolt, Zinc Plated | |||||||||||
| ART. NO. | Size mm |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
H mm |
L mm |
N.W. kg/100pcs |
| FD-3003 | 6.0 | 50.0 | 2.0 | 25.0 | 5.2 | 16.0 | 5.5 | 5.0 | 16.0 | 66.0 | 3.20 |
| FD-3003 | 6.0 | 55.0 | 2.0 | 29.0 | 5.2 | 16.0 | 5.5 | 5.0 | 16.0 | 70.0 | 3.50 |
| FD-3003 | 8.0 | 95.0 | 2.0 | 29.0 | 6.9 | 16.0 | 9.0 | 5.0 | 16.0 | 70.0 | 6.50 |
| FD-3003 | 8.0 | 82.0 | 2.0 | 43.0 | 6.9 | 16.0 | 9.0 | 5.0 | 16.0 | 85.0 | 7.90 |
| FD-3003 | 8.0 | 113.0 | 2.0 | 43.0 | 6.9 | 16.0 | 9.0 | 5.0 | 16.0 | 85.0 | 9.40 |
| FD-3003 | 8.0 | 82.0 | 2.0 | 50.0 | 6.9 | 16.0 | 9.0 | 5.0 | 16.0 | 92.0 | 9.80 |
| FD-3003 | 8.0 | 130.0 | 2.0 | 50.0 | 6.9 | 16.0 | 9.0 | 5.0 | 16.0 | 92.0 | 11.00 |
| FD-3003 | 8.0 | 70.0 | 2.0 | 35.0 | 6.9 | 16.0 | 9.0 | 5.0 | 16.0 | 77.0 | 6.90 |
| FD-3003 | 8.0 | 104.0 | 2.0 | 35.0 | 6.9 | 16.0 | 9.0 | 5.0 | 16.0 | 77.0 | 8.50 |
| FD-3003 | 8.0 | 140.0 | 2.0 | 68.0 | 6.9 | 16.0 | 9.0 | 5.0 | 16.0 | 110.0 | 12.50 |
| FD-3003 | 8.0 | 95.0 | 2.0 | 60.0 | 6.9 | 16.0 | 9.0 | 5.0 | 16.0 | 102.0 | 9.50 |
