Square U Bolts, Zinc Plated, Bolt, U Bolt, Galvanized Square U Bolt, U Bolt with Nut
Type：Rigging Hardware - Bolt Nut

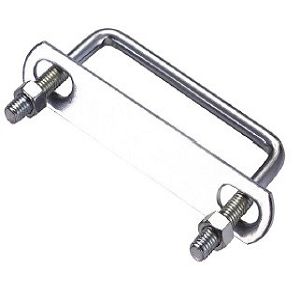

Square U Bolts, Zinc Plated

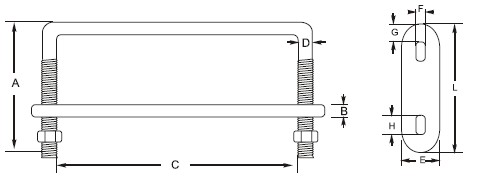

ART. NO. Size
mm A
mm B
mm C
mm D
mm E
mm F
mm G
mm H
mm L
mm N.W.
kg/100pcs

FD-3004 8 70 2 45 6.9 16 9 5 16 87 11.90

FD-3004 8 82 2 72 6.9 16 9 5 16 114 13.13

FD-3004 8 85 2 103 6.9 16 9 5 16 145 14.75

FD-3004 8 125 2 103 6.9 16 9 5 16 145 17.16

◇Prev：Snap Hook With Screw, Zinc Plated, Stainless Steel Snap Hook with Screw
◇Next：6x19 Steel Wire Rope (Ungalvanized and Galvanized)

【Square U Bolts, Zinc Plated, Bolt, U Bolt, Galvanized Square U Bolt, U Bolt with Nut】

Square U Bolts, Zinc Plated
ART. NO.	Size mm	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	L mm	N.W. kg/100pcs
FD-3004	8	70	2	45	6.9	16	9	5	16	87	11.90
FD-3004	8	82	2	72	6.9	16	9	5	16	114	13.13
FD-3004	8	85	2	103	6.9	16	9	5	16	145	14.75
FD-3004	8	125	2	103	6.9	16	9	5	16	145	17.16
