8xK19S 8xK26WS 8xK31WS 8xK36WS 8xK41WS Compacted Wire Rope (Ungalvanized and Galvanized)
Type:Wire Rope - Compacted Wire Rope

8xK19S 8xK26WS 8xK31WS 8xK36WS 8xK41WS
 Compacted Wire Rope (Ungalvanized and Galvanized)

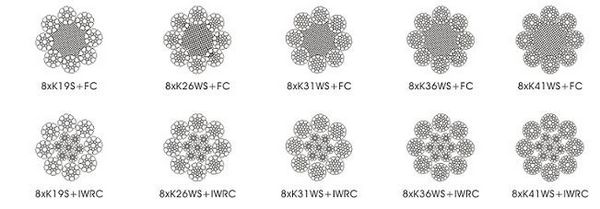

Construction:
8xK19S+FC 8xK26WS+FC 8xK31WS+FC 8xK36WS+FC 8xK41WS+FC
8xK19S+IWRC 8xK26WS+IWRC 8xK31WS+IWRC 8xK36WS+IWRC 8xK41WS+IWRC
Nominal
Diameter
Approx.Weight Nominal Tensile Strength of Rope (Mpa)
1570 1670 1770 1870
Minimun Breaking Load of Rope
D FC IWR
IWS
FC IWR
IWS
FC IWR
IWS
FC IWR
IWS
FC IWR
IWS
mm kg/100m (KN)
16 104 127 133 165 141 175 150 186 158 196
18 131 160 168 209 179 222 189 235 200 248
20 162 198 207 257 220 274 234 290 247 307
22 196 240 251 312 267 331 283 351 299 371
24 233 285 298 371 317 394 336 418 355 442
26 274 335 350 435 373 463 395 491 417 518
28 318 388 406 505 432 537 458 569 484 601
30 365 446 466 579 496 616 526 653 555 690
32 415 507 531 659 564 701 598 743 632 785
34 468 572 599 744 637 792 675 839 713 886
36 525 642 671 834 714 887 757 941 800 994
38 585 715 748 930 796 989 843 1050 891 1110
40 648 792 829 1030 882 1100 935 1160 987 1230
42 714 873 914 1140 973 1210 1030 1280 1090 1350
44 784 958 1000 1250 1070 1330 1130 1400 1190 1480
46 857 1047 1100 1360 1170 1450 1240 1540 1310 1620
48 933 1140 1190 1480 1270 1580 1350 1670 1420 1770
50 1010 1240 1300 1610 1380 1710 1460 1810 1540 1920
52 1100 1340 1400 1740 1490 1980 1580 1960 1670 2070
54 1180 1440 1510 1880 1610 2000 1700 2120 1800 2240
56 1270 1550 1620 2020 1730 2150 1830 2280 1940 2400
58 1360 1670 1740 2170 1850 2300 1960 2440 2080 2580
60 1460 1780 1870 2320 1980 2460 2100 2610 2220 2760
62 1560 1900 1990 2470 2120 2630 2250 2790 2370 2950
64 1660 2030 2120 2640 2260 2800 2390 2970 2530 3140
66 1760 2160 2260 2800 2400 2980 2540 3160 2690 3340
68 1870 2290 2400 2980 2550 3170 2700 3360 2850 3550
70 1980 2430 2540 3150 2700 3360 2860 3560 3020 3760
Main application: hoisting for erect well, mine hoist, large casting, oil drilling, hoisting a large
ships, offshore installations, aerial tramway and the transport and lifting equipment.
