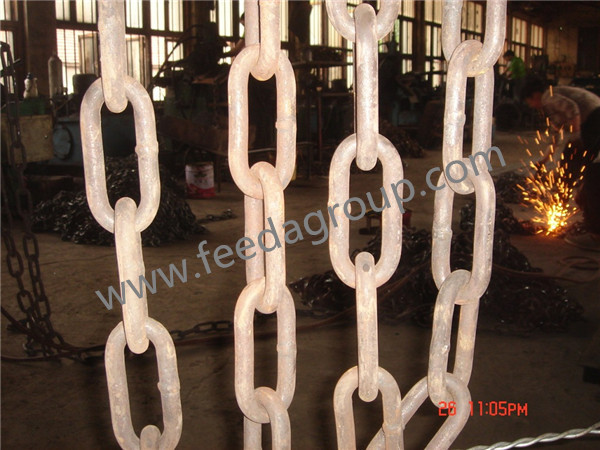

Lashing Chain
Type：Chain - Welded Link Chain

Lashing Chain

Code Dimension. mm
Nominal Weight Max Load Proof Load Breaking Load

Chain for Lashing

D L I KN T KN T KN T

FD-9-8 9 57 16 1.5 25 2.5 60 6 102 10.2

FD-11-8 11 66 18 2.1 38 3.8 90 9 154 15.4

FD-13-8 13 81 22 2.9 54 5.4 120 12 214 21.4

Code For Lashing Chain
mm Length
mm Approx
Weight
Kilos Breaking
Strength
Ton

Tension Lever

Lever 9 9 600 3.5 10

Lever 11 11 600 3.9 15

Lever 13 13 650 6.0 20

Code For Lashing Chain
mm Approx Weight Kilos Breaking
Strength
Ton

Lashing Hooks

9-L 9 0.5 10

11-L 11 0.85 15

13-L 13 1.1 20

◇Prev：6x19 Steel Wire Rope (Ungalvanized and Galvanized)
◇Next：European Type Large Dee Shackle

【Lashing Chain】

Lashing Chain

Code	Dimension. mm Nominal			Weight	Max Load		Proof Load		Breaking Load
Chain for Lashing
	D	L	I		KN	T	KN	T	KN	T
FD-9-8	9	57	16	1.5	25	2.5	60	6	102	10.2
FD-11-8	11	66	18	2.1	38	3.8	90	9	154	15.4
FD-13-8	13	81	22	2.9	54	5.4	120	12	214	21.4

Code	For Lashing Chain mm			Length mm			Approx Weight Kilos		Breaking Strength Ton
Tension Lever
Lever 9	9			600			3.5		10
Lever 11	11			600			3.9		15
Lever 13	13			650			6.0		20

Code	For Lashing Chain mm			Approx Weight Kilos					Breaking Strength Ton
Lashing Hooks
9-L	9			0.5					10
11-L	11			0.85					15
13-L	13			1.1					20
