Plastic Chain
Type:Chain - Plastic Chain

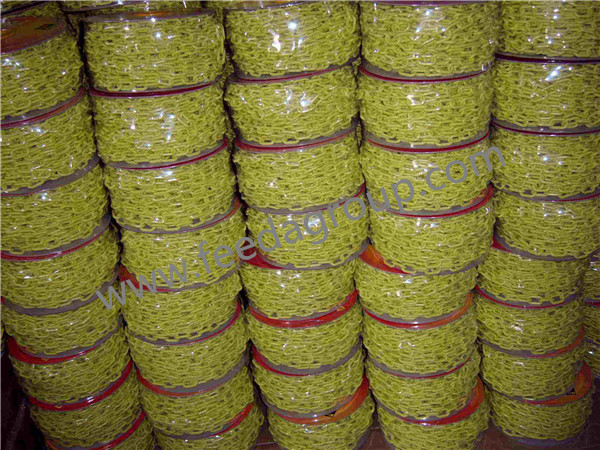

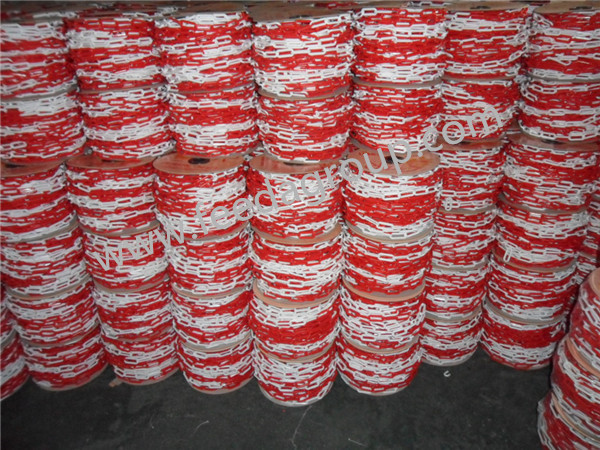

Plastic Chain
D L I W Length per 11 Links
Size InsideLength Inside
Width
Outside
Width
mm ±mm mm +mm -mm mm mm mm +mm -mm
2 0.2  12.0  0.2  0.2  3.5  7.5  132 1.0  0.5
3 0.2  16.0  0.2  0.2  4.2  11.0  176 1.4  0.7
4 0.2  16.0  0.3  0.2  5.0  13.7  176 2.1  1.1
5 0.2  18.5  0.4  0.2  6.0  17.0  203.5 2.4  1.2
6 0.2  18.5  0.4  0.2  7.2  20.2  203.5 2.4  1.2
7 0.3  22.0  0.4  0.2  8.4  23.8  242 3.0  1.4
8 0.3  24.0  0.4  0.2  9.6  27.2  264 3.2  1.5
9 0.4  27.0  0.5  0.3  10.8  30.6  297 3.6  1.8
10 0.4  28.0  0.5  0.3  12.0  34.0  308 3.7  1.9
11 0.4  31.0  0.5  0.3  13.2  37.4  341 4.0  2.0
12 0.3  36.0  0.6  0.3  14.4  40.8  396 4.4  2.2
13 0.5  36.0  0.6  0.3  15.6  44.2  396 4.6  2.4
14 0.6  41.0  0.7  0.4  16.8  47.6  451 5.4  2.7
16 0.6  45.0  0.8  0.4  19.2  54.4  495 6.0  3.0
18 0.9  50.0  0.8  0.4  21.3  61.2  550 6.6  3.3
19 0.4  53.0  0.9  0.4  22.8  64.6  583 7.0  3.7
20 1.0  56.0  1.0  0.5  24.0  68.0  616 7.4  3.7
22 1.2  62.0  1.1  0.5  26.4  75.0  682 8.0  4.0
23 1.2  64.0  1.1  0.5  27.6  78.2  704 8.4  4.2
26 1.3  73.0  1.2  0.6  31.2  88.4  803 9.6  4.8
28 1.4  78.0  1.3  0.65  33.8  95.2  858 10.2  5.1
30 1.5  84.0  1.4  0.7  41.0  102.0  924 11.0  5.5
32 1.6  90.0  1.5  0.75  43.0  108.2  990 11.8  5.9
