Hand Spliced Sling | ||||||||
Diameter | Length | Width | 1570N/mm² (160kgf/mm²) |
1670N/mm² (170kgf/mm²) |
1770N/mm² (180kgf/mm²) | |||

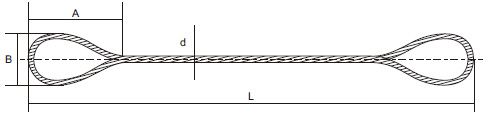

d | A | B | ||||||
mm | mm | mm | MBL (T) |
SWL (T) |
MBL (T) |
SWL (T) |
MBL (T) |
SWL (T) |
6 | 160 | 80 | / | / | / | / | 2.00 | 0.33 |
9 | 200 | 100 | 3.63 | 0.61 | 3.87 | 0.64 | 4.10 | 0.68 |
10 | 240 | 120 | 4.48 | 0.75 | 4.77 | 0.80 | 5.06 | 0.84 |
12 | 240 | 120 | 6.46 | 1.08 | 6.87 | 1.15 | 7.28 | 1.12 |
14 | 240 | 120 | 8.79 | 1.47 | 9.35 | 1.56 | 9.91 | 1.65 |
16 | 280 | 140 | 11.48 | 1.91 | 12.21 | 2.04 | 12.95 | 2.16 |
18 | 320 | 160 | 14.53 | 2.42 | 15.46 | 2.58 | 16.39 | 2.73 |
20 | 360 | 180 | 17.94 | 2.99 | 19.08 | 3.18 | 20.22 | 3.37 |
22 | 400 | 200 | 21.71 | 3.62 | 23.09 | 3.85 | 24.48 | 4.08 |
24 | 440 | 220 | 25.84 | 4.31 | 27.48 | 4.58 | 29.13 | 4.86 |
26 | 480 | 240 | 30.33 | 5.05 | 32.26 | 5.38 | 34.18 | 5.70 |
28 | 520 | 260 | 35.16 | 5.86 | 37.41 | 6.23 | 39.65 | 6.61 |
30 | 560 | 280 | 40.37 | 6.73 | 42.74 | 7.16 | 45.51 | 7.59 |

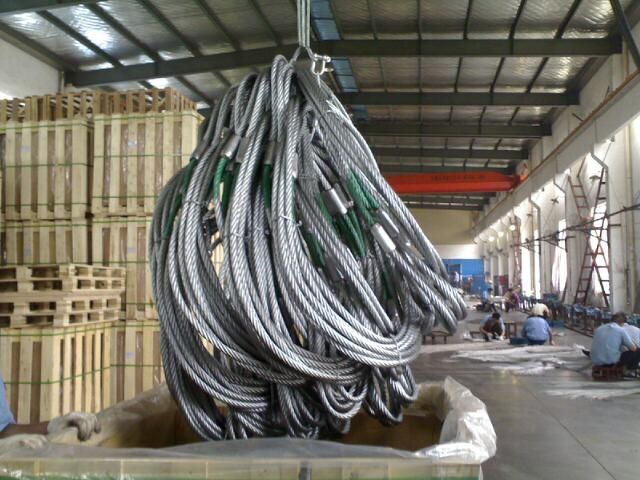

Hand-spliced slings are made by galvanized or ungalvanized steel wire rope. The end of the inserting part can be coated with PVC or pressed with ferrule as safeguard. The slings above can be manufactured by 6x19 , 6x24 , 6x37 steel wire rope . |
