Pressed and Spliced Ring | |||||
Structure Diameter |
Nominal Tensile Strength |
Minimal Breaking Force |

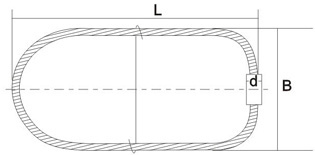

d | B | L |
mm | Mpa | KN | mm | mm | mm |
7*19S-6 | 1770 | 22.6 | 6 | 114 | 205 |
7*19S-7 | 1770 | 30.8 | 8 | 127.3 | 229 |
7*19S-8 | 1770 | 40.3 | 8 | 139.1 | 250 |
7*19S-9 | 1770 | 51 | 9 | 166.8 | 300 |
7*19S-10 | 1770 | 63 | 10 | 181.3 | 326 |
7*19S-12 | 1770 | 90.7 | 12 | 205.8 | 370 |
7*19S-14 | 1770 | 114 | 14 | 254.7 | 458 |
7*19S-16 | 1770 | 149 | 16 | 278.2 | 500.2 |
7*19S-18 | 1770 | 189 | 18 | 333.7 | 600 |
7*37S-20 | 1670 | 213 | 20 | 362.6 | 652 |
7*37S-22 | 1670 | 257 | 22 | 376.6 | 687.5 |
7*37S-26 | 1670 | 360 | 26 | 452 | 812.8 |
7*37S-28 | 1670 | 417 | 28 | 486.8 | 875.3 |
7*37S-32 | 1670 | 545 | 32 | 556.3 | 1000.4 |
Introduction: The diameter pressed and spliced ring we could supply up to 48mm ,and the biggest testing tonnage we could perform is 100T. Various cable rings are available on request. |
