Stainless Steel Wire
Sizes of Stainless Steel Wire
Wire Diameter(mm)	Tolerance(mm)	Max. Deviation Tolerance (mm)
0.020-0.049	+0.002/-0.001	0.001
0.050-0.074	0.002	0.002
0.075-0.089	0.002	0.002
0.090-0.109	+0.003/-0.002	0.002
0.110-0.169	0.003	0.003
0.170-0.184	0.004	0.004
0.185-0.199	0.004	0.004
0.200-0.299	0.005	0.005
0.300-0.310	0.006	0.006
0.320-0.499	0.006	0.006



AISI	Chemical Composition(%)
Grade
	C	Si	Mn	P	S	Ni	Cr	Mo
304	=<0.08	=<1.00	=<2.00	=<0.045	=<0.030	8.00~10.50	18.00~20.00	-
304H	>0.08	=<1.00	=<2.00	=<0.045	=<0.030	8.00~10.50	18.00~20.00	-
304L	=<0.030	=<1.00	=<2.00	=<0.045	=<0.030	9.00~13.50	18.00~20.00	-
316	=<0.045	=<1.00	=<2.00	=<0.045	=<0.030	10.00~14.00	10.00~18.00	2.00~3.00
316L	=<0.030	=<1.00	=<2.00	=<0.045	=<0.030	12.00~15.00	16.00~18.00	2.00~3.00
430	=<0.12	=<0.75	=<1.00	=<0.040	=<0.030	=<0.60	16.00~18.00	-
43, 0A	=<0.06	=<0.50	=<0.50	=<0.030	=<0.50	=<0.25	14.00~17.00	-

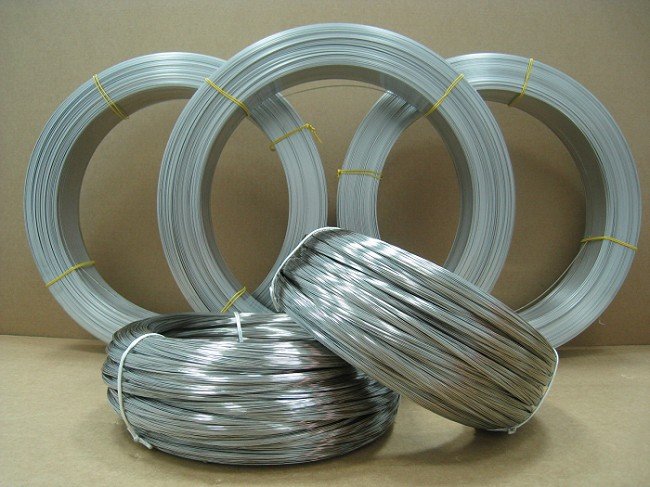

Stainless Steel Wire: •Sizes: 0.025mm---6.0mm •Material: sus302、sus304、sus16、sus304L、sus316L  •Stainless steel wire is used in a number of industries including wire-drawing, weaving of  wire mesh, soft pipe, beam of cabinet, steel wire rope, filter material and equipment, spring,  making of handicrafts, etc.
