Japan Rigging Screw JIS-F3430-1977
Type：Rigging Hardware - Turnbuckle

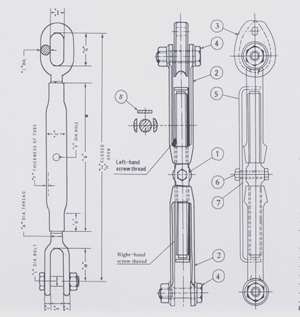

Japan Rigging Screw JIS-F3430-1977

Size Wire Rope Dia. S.W.L kN Screw Dia.

14 14 20.6 M22

16 16 25.5 M24

18 18 32.4 M27

22 20~22.4 50 M27

24 24 57.9 M30

25 25 67.7 M33

30 28~30 90.2 M39

32 32 103 M39

34 34 112.8 M42

36 36 127.5 M45

38 38 142.2 M48

40 40 161.8 M52

42 42.5 181.4 M56

45 45 206 M60

48 47.5 226 M64

50 50 250.1 M64

◇Prev：6x19 Steel Wire Rope (Ungalvanized and Galvanized)
◇Next：Ratchet Type Load Binders

【Japan Rigging Screw JIS-F3430-1977】

Japan Rigging Screw JIS-F3430-1977

Size	Wire Rope Dia.	S.W.L kN	Screw Dia.
14	14	20.6	M22
16	16	25.5	M24
18	18	32.4	M27
22	20~22.4	50	M27
24	24	57.9	M30
25	25	67.7	M33
30	28~30	90.2	M39
32	32	103	M39
34	34	112.8	M42
36	36	127.5	M45
38	38	142.2	M48
40	40	161.8	M52
42	42.5	181.4	M56
45	45	206	M60
48	47.5	226	M64
50	50	250.1	M64
