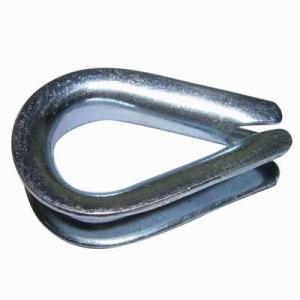

DIN 6899 B Type Wire Rope Thimble
Type:Rigging Hardware - Wire Rope Thimble





DIN 6899 B Type Wire Rope Thimble
SIZE B H D
mm mm mm mm
2.5x3 3 19 12
3.5x4 4 21 13
4x5 5 23 14
5x6 6 25 16
6x7 7 28 18
7x8 8 32 20
8x9 9 35 22
9x10 10 38 24
10x11 11 41 26
11x12 12 45 28
12x13 13 48 30
13x14 14 51 32
14x15 15 54 34
15x16 16 58 36
16x17 17 61 38
16x18 18 64 40
18x20 20 72 45
20x22 22 80 50
22x24 24 90 56
24x26 26 99 62
26x28 28 112 70
28x30 30 120 75
30x32 32 128 80
32x34 34 152 95
34x36 36 160 100
36x38 38 176 110
38x40 40 184 115
40x42 42 192 120
42x45 45 240 150

Galvanised Wire Rope Thimble DIN 6899-B

•Size From 2.5mm to 42mm

•Material: Mild Steel.
