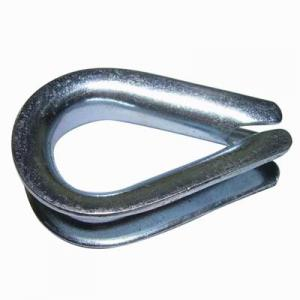

Galvanized Thimble DIN 6899 Type A
Type：Rigging Hardware - Wire Rope Thimble

Galvanized Thimble DIN 6899 Type A

SIZE B H D

mm mm mm mm

1.8 2 17.5 8

2 2.5 19.5 9

2.5 3 21.5 10

3 3.5 23.5 11

3.5 4 26.5 12

4 5 28.5 13

5 6 30 14

6 7 33 15

7 8 35 16

8 9 39 18

9 10 43 20

10 11 47.5 22

11 12 51.5 24

12 13 56.5 26

13 14 61 28

15 16 69.5 32

16 19 78 35

18 20 86.5 40

20 22 95 44

24/26 26 105 48

Galvanised Wire Rope Thimble DIN 6899 Type A

•Size From 1.8mm to 26mm

•Material: Mild Steel

◇Prev：6x19 Steel Wire Rope (Ungalvanized and Galvanized)
◇Next：Ratchet Type Load Binders

【Galvanized Thimble DIN 6899 Type A】

Galvanized Thimble DIN 6899 Type A

SIZE	B	H	D
mm	mm	mm	mm
1.8	2	17.5	8
2	2.5	19.5	9
2.5	3	21.5	10
3	3.5	23.5	11
3.5	4	26.5	12
4	5	28.5	13
5	6	30	14
6	7	33	15
7	8	35	16
8	9	39	18
9	10	43	20
10	11	47.5	22
11	12	51.5	24
12	13	56.5	26
13	14	61	28
15	16	69.5	32
16	19	78	35
18	20	86.5	40
20	22	95	44
24/26	26	105	48
Galvanised Wire Rope Thimble DIN 6899 Type A •Size From 1.8mm to 26mm •Material: Mild Steel
