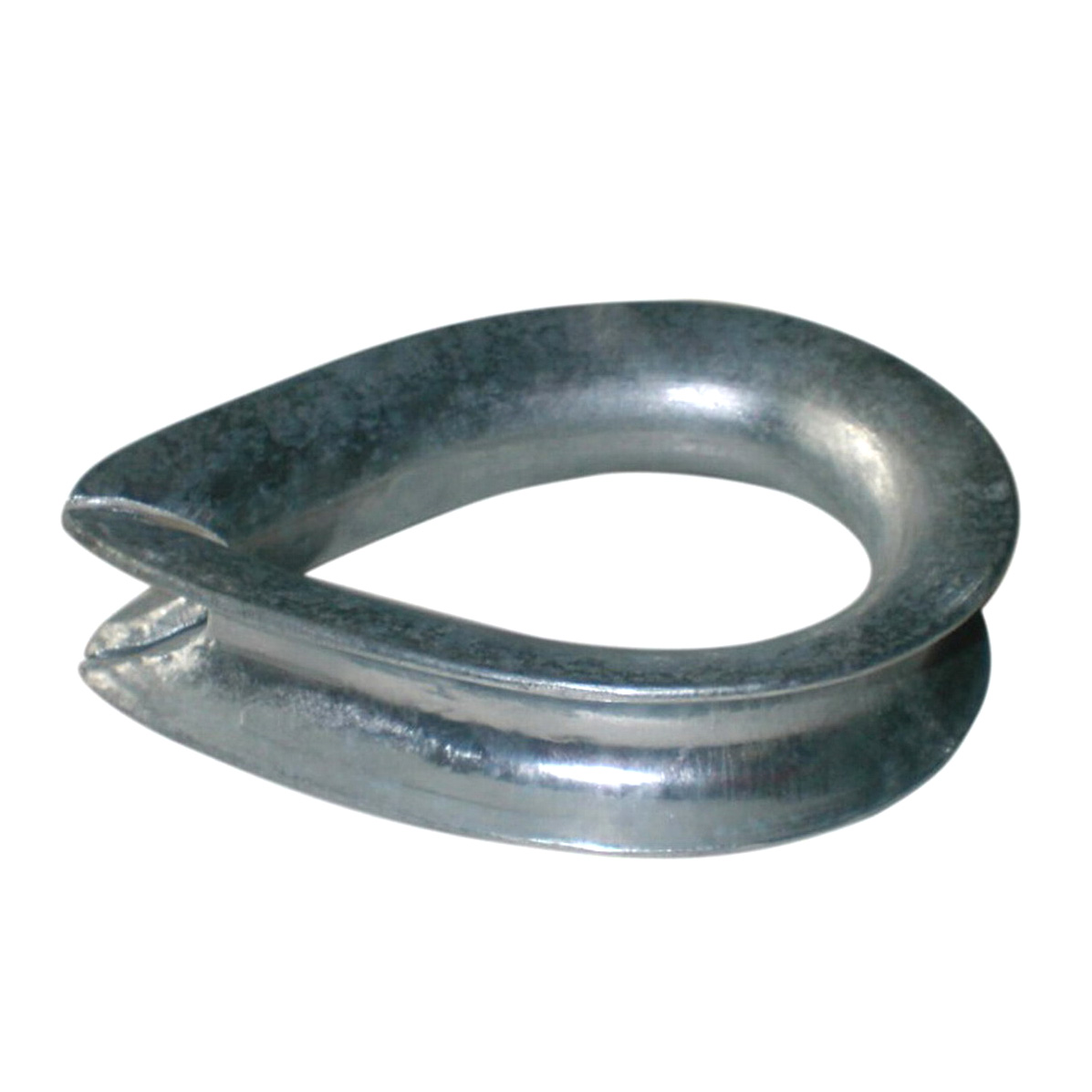

BS464 Wire Rope Thimble
Rope  Dia. (in)	Weight (kgs)	Dimensions (mm)
		A	B	C	D	E	F	G	K	Q
5/16	0.077	22.20	38.00	12.70	33.40	52.00	7.90	4.00	4.00	30.10
3/8	0.100	25.40	47.60	14.30	38.00	64.00	10.30	6.30	4.80	35.00
7/16	0.107	28.60	52.00	17.50	41.30	73.00	12.70	7.90	4.80	38.00
1/2	0.170	31.70	53.80	20.60	44.50	79.40	14.30	7.90	5.50	42.90
9/16	0.189	31.70	58.80	20.60	44.50	79.40	14.30	7.90	5.50	42.90
5/8	0.300	41.30	74.50	22.20	58.80	95.80	15.90	8.70	7.90	56.00
3/4	0.600	50.80	92.00	28.60	73.00	124.00	20.60	11.10	9.50	69.80
7/8	0.690	56.00	102.00	31.70	82.50	133.00	22.20	12.70	9.50	76.20
1/2	1.150	69.80	119.00	35.00	108.00	162.00	27.00	14.30	10.30	90.50
1-1/8	1.400	76.20	133.00	38.00	112.00	178.00	28.60	15.90	12.70	102.00
1-1/4	1.500	95.00	152.00	41.30	133.00	197.00	33.40	15.90	12.70	121.00
1-3/8	2.500	105.00	175.00	47.60	152.00	228.00	38.00	19.00	15.90	137.00
1-1/2	3.750	114.00	197.00	52.00	165.00	254.00	41.30	23.80	17.50	149.00
1-5/8	3.910	114.00	197.00	58.60	165.00	254.00	42.90	23.80	17.50	149.00
1-3/4	6.670	127.00	228.00	56.00	178.00	286.00	50.80	25.40	25.40	178.00
1-7/8	8.420	133.00	248.00	66.60	190.00	317.00	60.40	28.60	28.60	190.00
2	9.980	140.00	257.00	69.80	203.00	330.00	64.00	30.10	28.60	197.00
