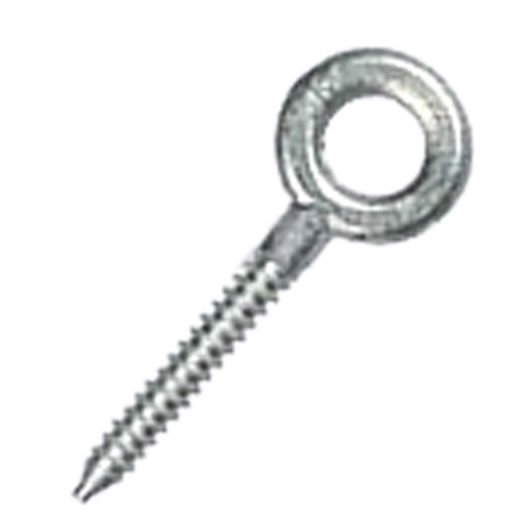

G-275 Screw Eye Bolts
Type：Rigging Hardware - Bolt Nut

G-275 Screw Eye Bolts

Shank
Diameter
& Length
(in.) Weight
per 100
(Lbs) Dimensions (in.)

A B C D E F G H J

1/4×2 4.25 0.25 1.50 2.00 2.50 2.94 0.50 0.88 0.19 0.47

5/16×2-1/4 6.25 0.31 1.69 2.25 2.94 3.50 0.63 1.13 0.25 0.56

3/8×2-1/2 18.75 0.38 1.88 2.50 3.28 3.97 0.75 1.38 0.31 0.66

1/2×3-1/4 37.5 0.50 2.44 3.25 4.25 5.12 1.00 1.75 0.38 0.91

5/8×4 68.75 0.63 3.00 4.00 5.31 6.44 1.25 2.25 0.50 1.12

◇Prev：6x19 Steel Wire Rope (Ungalvanized and Galvanized)
◇Next：Ratchet Type Load Binders

【G-275 Screw Eye Bolts】

G-275 Screw Eye Bolts

Shank Diameter & Length (in.)	Weight per 100 (Lbs)	Dimensions (in.)
Shank Diameter & Length (in.)	Weight per 100 (Lbs)	A	B	C	D	E	F	G	H	J
1/4×2	4.25	0.25	1.50	2.00	2.50	2.94	0.50	0.88	0.19	0.47
5/16×2-1/4	6.25	0.31	1.69	2.25	2.94	3.50	0.63	1.13	0.25	0.56
3/8×2-1/2	18.75	0.38	1.88	2.50	3.28	3.97	0.75	1.38	0.31	0.66
1/2×3-1/4	37.5	0.50	2.44	3.25	4.25	5.12	1.00	1.75	0.38	0.91
5/8×4	68.75	0.63	3.00	4.00	5.31	6.44	1.25	2.25	0.50	1.12
