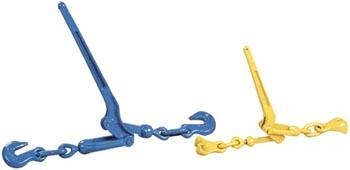

Lever type load binder | ||||||||||||

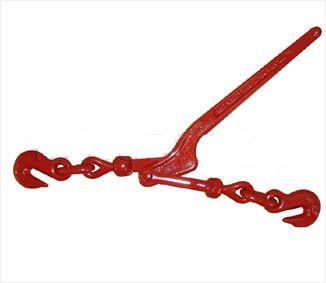

Lever type load binder with grab hook | ||||||||||||
Min-Max Chain Size |
W.L.L. | Proof Load |
Min. Ultimate Load |
Weight /Each |
Handle Length |

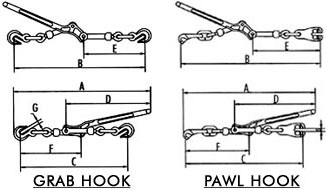

A | B | C | E | E1 | F | F |
in | lbs | lbs | lbs | lbs | in | mm | ||||||
1/4-5/16 | 2200 | 4400 | 7800 | 3.52 | 11.42 | 18.5 | 17.3 | 14.17 | 11.42 | 8.27 | 8.07 | 0.35 |
5/16-3/8 | 5400 | 10800 | 19000 | 8.37 | 15.43 | 25.2 | 23.2 | 19.49 | 15.55 | 11.22 | 11.22 | 0.51 |
3/8-1/2 | 9200 | 18400 | 28000 | 12.11 | 17.24 | 28.5 | 26.38 | 22.05 | 17.64 | 12.99 | 12.2 | 0.59 |
1/2-5/8 | 11000 | 22000 | 440000 | 19.7 | 21 | 33.86 | 30.12 | 25.78 | 20.87 | 14.37 | 14.37 | 0.74 |
Lever type load binder with pawl hook | ||||||||||||
Min-Max Chain Size |
W.L.L. | Proof Load |
Min. Ultimate Load |
Weight /Each |
Handle Length |
A | B | C | E | E1 | F | F |
in | lbs | lbs | lbs | lbs | in | mm | ||||||
1/4-5/16 | 2200 | 4400 | 7800 | 3.6 | 11.42 | 20.66 | 18.7 | 15.35 | 11.42 | 8.85 | 8.85 | 0.35 |
5/16-3/8 | 5400 | 10800 | 19000 | 8.56 | 15.43 | 25.2 | 25.2 | 21.46 | 15.55 | 12.2 | 12.2 | 0.47 |
3/8-1/2 | 9200 | 184000 | 28000 | 12.38 | 17.24 | 28.15 | 28.7 | 24.61 | 17.52 | 13.58 | 13.58 | 0.59 |
•Safety,durability designed for all heavy duty transport use. (take up slack and apply tension to a tie down system) •Drop forged steel,high strength. •Free 360 degree swivel hooks for easier handling. •Heata2 treated for extra strength. •Each binder individually proof tested. •Equipped with claw hooks for easy onea2 handed connection to loose or taut chain. (grab hook) •Material: Carbon Steel, Alloy Steel •Handle: Drop forged, casting •Size: 1/4-5/16, 5/16-3/8, 3/8-1/2, 1/2-5/8 inches. •Finish: Painted. •Fitting for chain |
