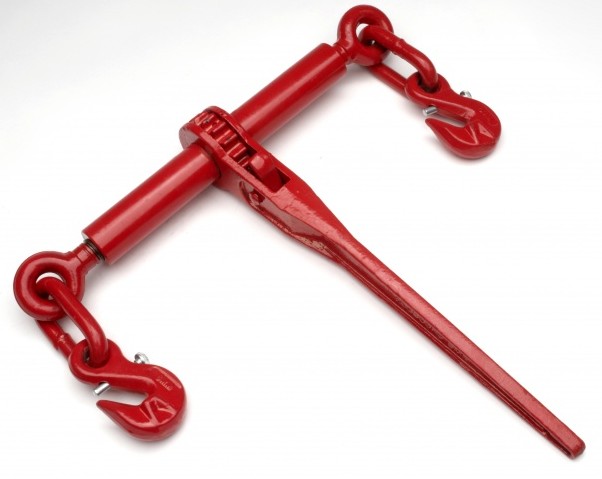

Ratchet Type Load Binders | |||||||||||||
Min-Max Chain Size |
W.L.L. | Proof Load |
Min. Ultimate Load |
Weight /Each |
Handle Length |
A | B | C | E | E1 | F | F1 | G |
in | lbs | lbs | lbs | lbs | in | mm | |||||||
1/4-5/16 | 2200 | 4400 | 7800 | 3.52 | 7.16 | 7.16 | 0.89 | 1.77 | 16.22 | 21.26 | 17.79 | 22.83 | 0.35 |
5/16-3/8 | 5400 | 10800 | 19000 | 10.5 | 13.42 | 13.92 | 1.3 | 2.6 | 22.64 | 30.64 | 25.24 | 33.24 | 0.51 |
3/8-1/2 | 9200 | 18400 | 33000 | 12.9 | 13.92 | 13.92 | 1.3 | 2.6 | 24.13 | 32.13 | 27.04 | 35.04 | 0.59 |
1/2-5/8 | 13000 | 26000 | 46000 | 14.38 | 13.92 | 13.92 | 1.3 | 2.6 | 26.45 | 34.45 | 30.07 | 38.07 | 0.74 |
•Safety,reliable design for easy operation. •No requirement for locking of handle than lever type load binders •High quality drop forged construction. •End fittings for each end to suit your application.(only for ratchet type load binder without links of hooks) |
