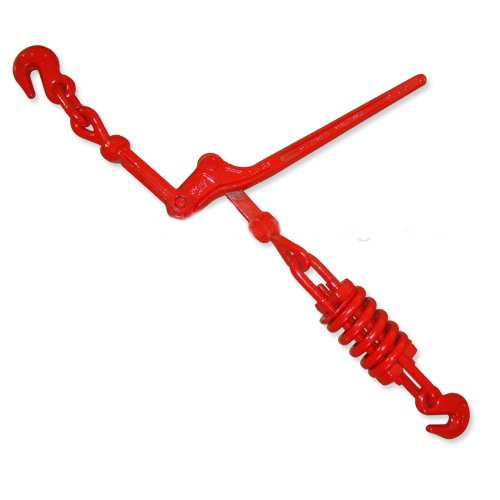

Spring Load Binder, Snap Binder
Type：Rigging Hardware - Load Binders

Spring Load Binder, Snap Binder

Min-Max
Chain
Size Working
Load
Limit Proof
Load Minimum
Ultimate
Load Weight
/Each Handle
Length Dimensions
(in.)

(in.) (lbs.) (lbs.) (lbs.) (lbs.) (in.) A B C D E F G

1/4-5/16 2600 5200 7800 5.36 11.42 26.27 17.8 21.89 11.42 8.07 15.97 0.31

3/8-1/2 9200 18400 28000 19.81 17.24 37 35.83 31.49 17.64 12.99 18.7 0.59

◇Prev：6x19 Steel Wire Rope (Ungalvanized and Galvanized)
◇Next：G80 European Type Connecting Link

【Spring Load Binder, Snap Binder】

Spring Load Binder, Snap Binder

Min-Max Chain Size	Working Load Limit	Proof Load	Minimum Ultimate Load	Weight /Each	Handle Length	Dimensions (in.)
(in.)	(lbs.)	(lbs.)	(lbs.)	(lbs.)	(in.)	A	B	C	D	E	F	G
1/4-5/16	2600	5200	7800	5.36	11.42	26.27	17.8	21.89	11.42	8.07	15.97	0.31
3/8-1/2	9200	18400	28000	19.81	17.24	37	35.83	31.49	17.64	12.99	18.7	0.59
