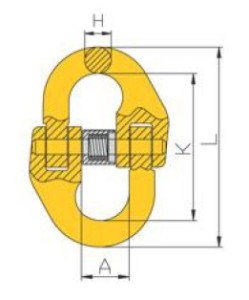

G80 European Type Connecting Link
ITEM NO.	WEIGHT/KG	WLL/T	B.L/T	A	L	K	H
8-FD074-06	0.08	1.12	4.48	15	58	42	7
8-FD074-07	0.145	1.5	6	19	71.8	54.8	8.5
8-FD074-7/8	0.146	2	8	18	79.5	62.5	8.5
8-FD074-08	0.16	2	8	18	79.5	60.5	8.5
8-FD074-10	0.3	3.15	12.6	25	93	68	10.8
8-FD074-13	0.7	5.3	21.2	29	117	87	15
8-FD074-16	1.1	8	32	34.5	148	108.4	19.8
8-FD074-18	1.84	10	40	38	154	112	21
8-FD074-18/20	1.8	12.5	50	41	169.5	121.5	24
8-FD074-22	3.2	15	60	48	193.5	141.5	26
8-FD074-26	4.5	21.2	84.8	57.5	220	158	30
8-FD074-32	9	31.5	126	67	281	205	37
